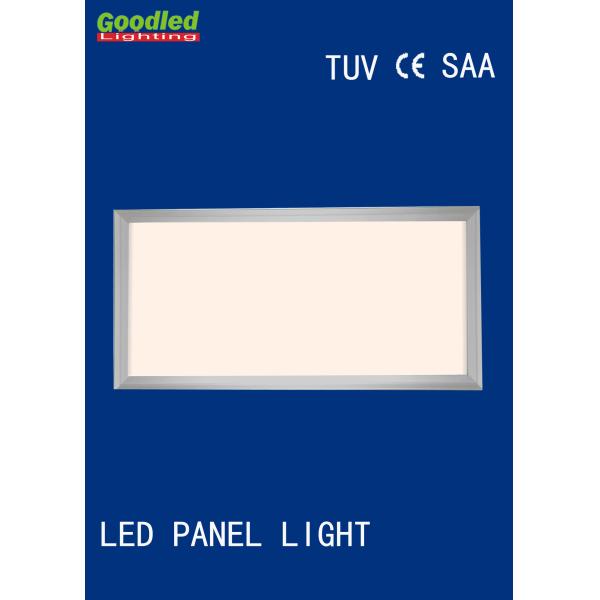

25W Cool White Ultra Thin Dimmable LED Panel Light 300x600 mm For Showcase
Description:
The 0-10VDC 3 in 1dimming LED panel light can realize 3 dimming function:0/1-10V, PWM. Resistance
--0/1-10VDC dimming: input 0/1-10VDC, the brightness can adjust from 5%--100%.
--PWM signal dimming: input PWM signal, the brightness can adjust from 5%--100%
--Resistance dimming: use resistance, can dimming the brightness of panel light.
Applications:
A widely application for illuminated and decoratied in commercial and home usesuch as home, office,
meeting rooms, library, hotels, restaurants ,hospital, school etc.
Competitive Advantage:
Specifications:
|
Product model |
Dimension |
Power |
Lumens |
Dimming |
|
GLPL-SA-L22-W12 |
200x200x12 mm |
12W |
820-1050 LM |
0-10VDC, PWM, Resistance 3 in1 |
|
GLPL-SA-L33-W12 |
296x296x12 mm |
12W |
800-1000 LM |
|
|
GLPL-SA-L33-W25 |
25W |
1600-1800 LM |
||
|
GLPL-SA-L36-W25 |
296x596x12 mm |
26W |
1600-1800 LM |
|
|
GLPL-SA-L312-W40 |
296x1196x12 mm |
40W |
2800-3200 LM |
|
|
GLPL-SA-L312-W50 |
50W |
3200-3600 LM |
||
|
GLPL-SA-L66-W40 |
596x596x12 mm |
40W |
2900-3400 LM |
|
|
GLPL-SA-L66-W50 |
50W |
3400-3800 LM |
||
|
GLPL-SA-L6262-W40 |
620x620x12 mm |
40W |
2900-3400 LM |
|
|
GLPL-SA-L6262-W50 |
50W |
3400-3800 LM |
||
|
GLPL-SA-L6262-W60 |
60W |
3800-4300 LM |
||
|
GLPL-SA-L612-W75 |
596x1196x12 mm |
75W |
4700-5300 LM |
|
Lux-Distance Curve |
|
Product model |
Dimension |
Power |
Lumens |
Cut size |
Equivalent |
|
GLDL-FSC-D120-W7 |
D120x18mm |
7W |
480LM |
D100mm |
40W incandescent lamp |
|
GLDL-FSC-D145-W8 |
D145x18mm |
8W |
560LM |
D125mm |
50W incandescent lamp |
|
GLDL-FSC-D180-W10 |
D180x18mm |
10W |
700LM |
D160mm |
80W incandescent lamp |
|
GLDL-FSC-D220-W13 |
D220x18mm |
13W |
850LM |
D200mm |
90W incandescent lamp |
|
GLDL-FSC-D240-W15 |
D240x18mm |
15W |
1000LM |
D220mm |
100W incandescent lamp |
|
GLDL-FSC-D300-W18 |
D300x18mm |
18W |
1330LM |
D280mm |
120W incandescent lamp |
|
GLDL-FSE-D200-W8 |
200x200x18mm |
8W |
580LM |
180x180mm |
50W incandescent lamp |
|
|
