Quick Details:
1.12mm thin
2. cut size 160mm
3.Rohs compliant, TUV&CE approval
4.Warranty:3years life:50000hrs
Description:

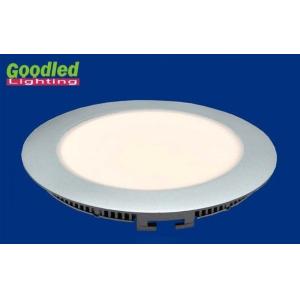

The GOODLED panel downlight is ultrathin design, only need shallow installed depth.
The GOODLED panel downlight made of PMMA light guide plate(LGP), full frosted polycarbonate diffuser, low voltage constant current driver(SELV) and aluminium alloy for excellent heat dissipation. Light is very soft ,They are modern and artistic ,can direct replacement for the compact fluorescent and standard downlight. compact design ,energy saving , low running and maintenance costs ensures the panel downlight is a perfect solution for the internal designer.Various size, power, color temperature can be choose.
Applications:
A widely application for illuminated and decoratied in commercial and home usesuch as home, office,meeting rooms, library, hotels, restaurants ,hospital, school etc.
Specifications:
| Part Number | Technical Characteristic Description | |||
| GLDL-FSC-D180-W10 | Input voltage | 90-264VAC | Product size | Φ180x12mm |
| Input Power | 10W | LED type | SMD LED | |
| CCT | 3000K,4000K,6000K | LED qty | 48pcs-0.2W | |
| Lumens | 750LM--800LM | Material | PMMA / AL | |
| Illuminance/1m | 240-260LUX | Cut size | Φ160-165mm | |
| CRI | 80-85 | View angle | 120 Degree | |
| PFC | ＞90% | Weight | 420g/ 580g | |
| Equivalent | 80W incandescent | Packing | 510*325*330mm /16pcs/11Kg | |
|
Warranty time |
3 years | |||
|
Product model |
Dimension |
Power |
Lumens |
Cut size |
Equivalent |
|
GLDL-FSC-D120-W7 |
D120x18mm |
7W |
480LM |
D100mm |
40W incandescent lamp |
|
GLDL-FSC-D145-W8 |
D145x18mm |
8W |
560LM |
D125mm |
50W incandescent lamp |
|
GLDL-FSC-D180-W10 |
D180x18mm |
10W |
700LM |
D160mm |
80W incandescent lamp |
|
GLDL-FSC-D220-W13 |
D220x18mm |
13W |
850LM |
D200mm |
90W incandescent lamp |
|
GLDL-FSC-D240-W15 |
D240x18mm |
15W |
1000LM |
D220mm |
100W incandescent lamp |
|
GLDL-FSC-D300-W18 |
D300x18mm |
18W |
1330LM |
D280mm |
120W incandescent lamp |
|
GLDL-FSE-D200-W8 |
200x200x18mm |
8W |
580LM |
180x180mm |
50W incandescent lamp |
